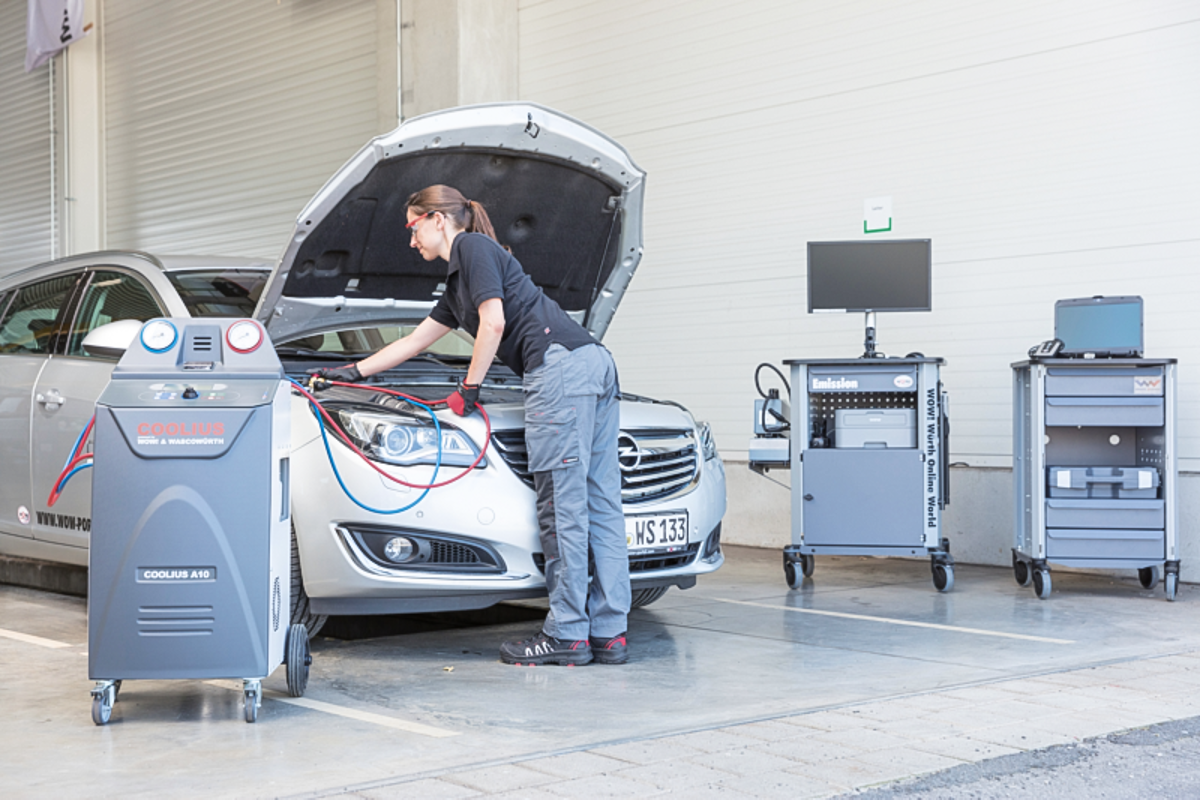

A/C service unit Coolius a10
WOW! COOLIUS SERIES - FULLY AUTOMATIC A/C SERVICE
COOLIUS A10 A/C service unit (Art. no. W050 101 000) consisting of:
- A/C service unit COOLIUS A10
- Service hoses with standard couplers (length 3.0 m)
- Stickers for the various oils and UV additives
- Service booklet
- Quick start guide (with website link for multi-lingual operating instructions)
- Vehicle fill quantity database
FEATURES
Well thought-out operation and unique mobility:
- Innovative data input with CooliusSelect: Convenient menu navigation and operation with navigation dial
- Innovative scale construction with a transport lock, which can be fixed without tools, allows easy mobile use
- Device is usable mobile, as it can be operated with a voltage transformer
Clever documentation:
- Readout and export of data via USB interface (Excel file)
- Enables the documentation of individual services and the evaluation of the total refrigerant consumption
Clean solution:
- Quick change of oil type possible through intelligent internal flushing of the line system (PAG to POE oil etc.) including flushing of the service hoses
- Ready for hybrid and electric vehicles - equipped with 1 fresh oil, 1 waste oil and 1 UV additive container
- High suction rate of the compressor allows recovery of almost 100% of the charged refrigerant
Service-friendly components:
- Use of high-quality and specially matched components, allows a long service interval
- Fast and easy fault diagnosis with two analogue manometers
No unwanted access:
- Personalized access for the device can be set up. Personalized 4-digit password ensures access only for authorized persons
ACCESSORIES
Maintenance agreement (Art. no. 0900 400 159)
- Carried out annually by service technicians (materials, travel and working time incl.) Not available in every country
External analyser for R134a (Art. no. W067 000 101)
- Analyses the composition and purity of the refrigerant. No printer included
Flushing kit (Art. no. W067 100 010)
- Allows flushing of the vehicle air conditioning system with liquid refrigerant (for R134a and R1234yf systems)
Extension kit service hoses (Art. no. W067 200 030)
- Extension kit 3.0 m
Covering hood (Art. no. W067 100 002)
- Protects your A/C service unit in the workshop from dirt and dust
TECHNICAL DATA
| Attribute | Value |
|---|---|
| Dimensions | 572 x 545 x 1045 mm |
| Weight | 65kg |
| Casing | Metal with robust plastic cover |
| Operating Power Supply | 230 V / 50 Hz |
| Operating temperature range | +10 / +49°C |
| Refrigerant | R134a |
| Refrigerant scale | 11 kg loadable |
| Max. operating pressure | 20 bar |
| Compressor | 1/3 HP |
| Recovery rate (liquid) | 300 g/min |
| Non condensable gas discharge | Automatic |
| Main filter dryer (1 piece) | Type 660 Coaxial |
| Large ventilator for safe operation | D 172 mm |
| High recovery speed by cooling the compressor with a fan | D 172 mm |
| Monitoring of pressure increase in the A/C system | Automatic |
| Old oil discharge | Automatic |
| Old oil bottle capacity - sealed | 250 ml |
| Oil / UV accuracy | ± 2 g |
| Refrigerant recovery and charge accuracy | ± 15 g |
| Vacuum pump capacity | 100 l/min |
| Final pressure (McLeod abs) | 0,05 mb |
| Electronic pressure sensor | Integrated |
| PAG / POE oil charge | Automatic |
| PAG / POE oil bottle capacity | 250 ml |
| UV additive bottle capacity | 100ml |
| Refrigerant charge | Automatic |
| Flushing program | Included |
| Refrigerant management system | Included |
| Convenient display | 4 x 20 characters |
| Acoustic signal | For errors and hints |
| Update of the vehicle data base | Via USB port |
| Set-up of own vehicle data base | Included |
| Integrated printer | With multiple printing |
| High pressure and low pressure valves | Electronically controlled |
| Pressure gauges (pulse free) | LP + HP CL 1.0 / D 80 mm |
| Parker quick couplers | SAE J639 |
| Service hoses 3.0 m | SAE J2197 |
| Extension kit service hoses | Optional |
| Service hoses compensation | Automatic |
| Certifications | CE-certification by TÜV Süd |
