UNDERSTANDING VEHICLES

We are one of the leading service providers for vehicle diagnosis, vehicle data, air conditioning service and exhaust emission testing.

We build future-oriented solutions for successful vehicle repair.

This means that we help our customers to understand vehicles and thus solve complex tasks quickly and easily.

OUR COMPEHENSIVE SOLUTIONS
diagnostics

Faster repair success with WOW! diagnosis

Our intuitive diagnostic systems offer everything for your diagnosis.

How? Through in-house developed software and hardware solutions from the workshop for the workshop.

afs

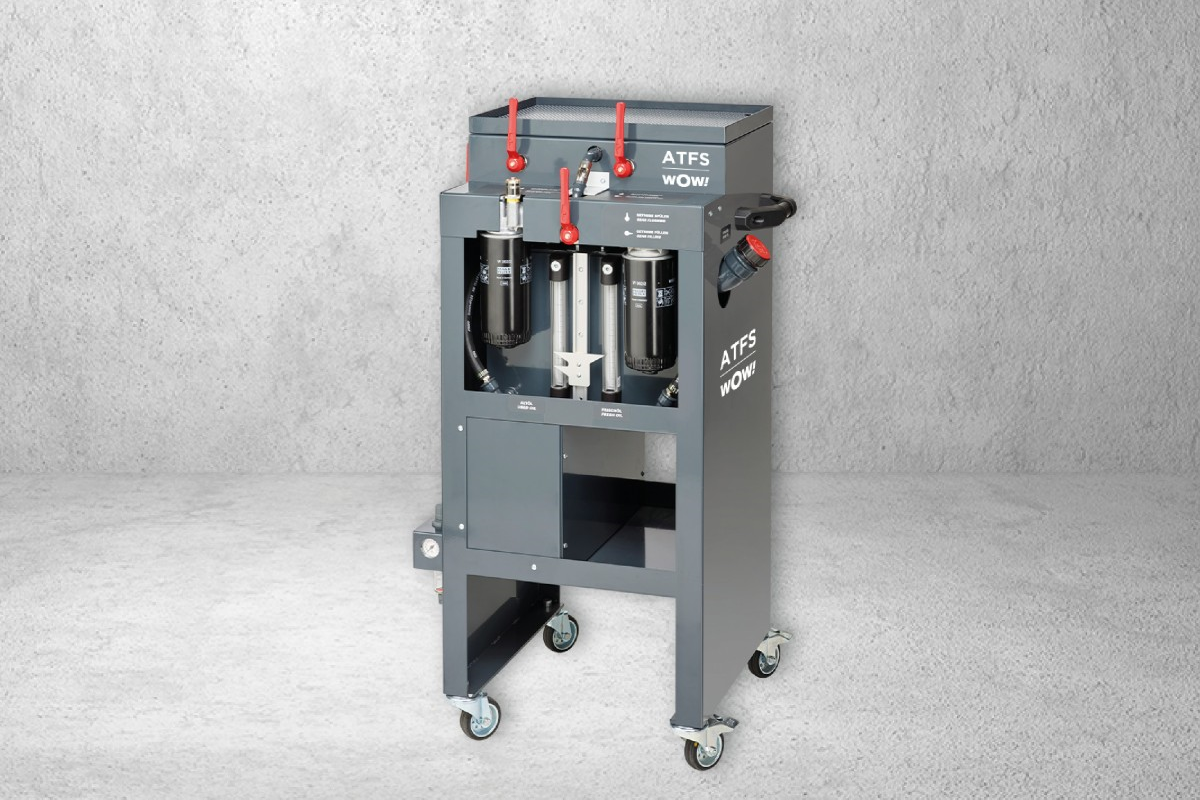

The WOW! Automatic Transmission Flushing System

The environmentally friendly transmission flushing without additives.

Flushing device for automatic transmissions

aircon

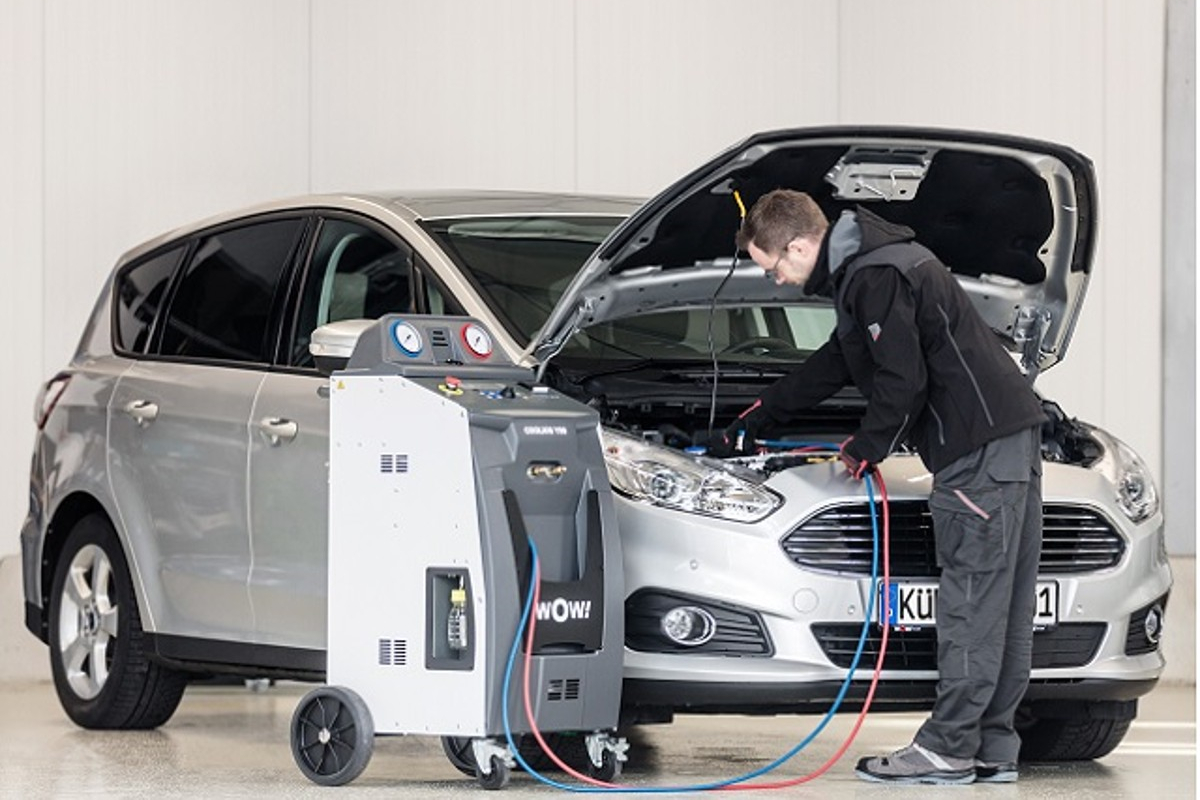

Our WOW! air conditioning service units'

Good for your workshop budget: fully automatic, powerful and time-saving air conditioning service units for all vehicle types.

  WOW! SNOOPER DIAGNOSTICS

Real power for your diagnosis!

Wireless diagnostic interface Snooper+ with Bluetooth connectivity. The integrated LED status display and the mounting bracket ensure ergonomic working. The flight recorder enables mobile data recording - without a passenger.

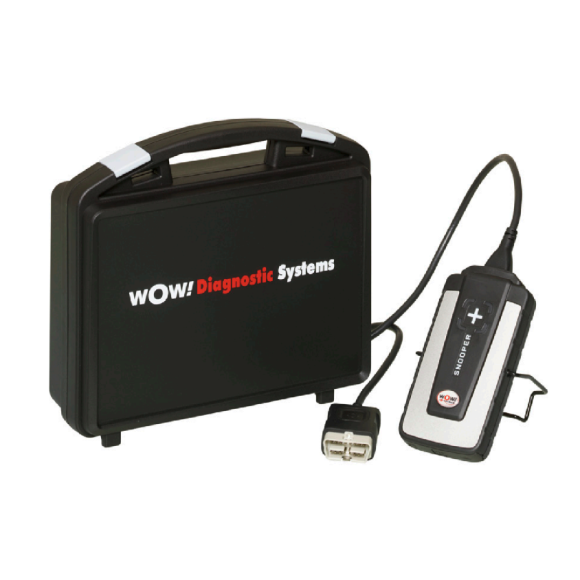

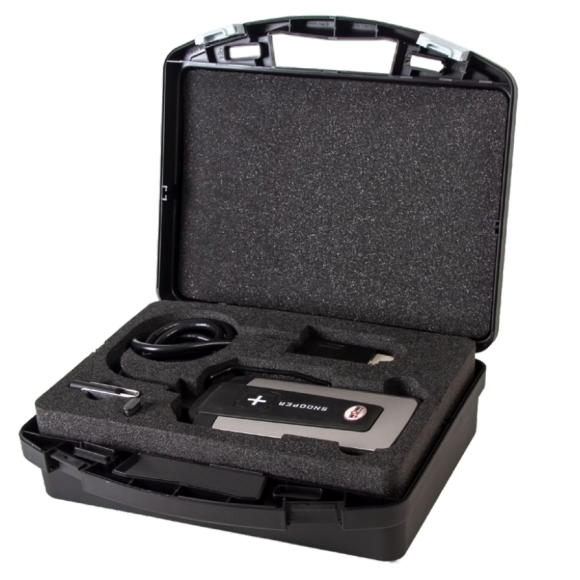

The WOW! Snooper+ consists of Diagnostic interface Snooper+, exchangeable extension cable with light, USB cable, quick reference guide, in stable system case as well as:

  • Snooper+ diagnostic interface with Bluetooth connectivity
  • USB cable for firmware transfer
  • WOW! diagnostic software*
  • Quick reference guide
snooper+ snooper+ case
wow
Software Licenses

For fully functional diagnostics, the WOW! diagnostic software license WSD 300 is required (Part No. W015 000 007). We recommend the WOW! Power package consisting of WSD 300 and WTI 350, for full access to Power Repair and the WOW! Software Highlights.

Please be aware that the license packages are dependent on the respective distribution countries and are therefore not everywhere available. For workshop use, we recommend the WOW! iQ Series laptops and tablets or the purchase of an iQ System (input device, readout device Snooper+ and WOW! diagnostic software).

Further information is available at www.wow-portal.com or directly from your Würth or WOW! contact person.

features-cover
Mobile & Reliable Cover

MOBILE & RELIABLE

Original Snooper+ diagnostics


  • Wireless operation via Bluetooth.
  • Rubberized surface for a secure grip.
  • Optical feedback of the processes through coloured LEDs.
  • Retaining bracket enables attachment to the window glass.
  • 16-pin connector with integrated LED light for easy location of the diagnostic junction box.
Unique Functions Cover

UNIQUE FUNCTION INFO

OriginaL Snooper+ diagnostic

Flight recorder for mobile data recording

  • All real-time data supported by the control units can be recorded.
  • Previous selection of the systems on the PC is possible.
  • Start of the flight recorder by using the integrated push button.
  • Evaluation and graphic display of the recorded data set on the PC, colour differentiation of the graphs for better visualization.
technical-data-cover
CriteiaData
Display
Optical and acoustic feedback via multi-colour LED of the running processes for an optimal
diagnostic process.
Memory
Micro-SD memory card (8 GB)
Interfaces/connections
  • Internal protected Bluetooth antenna: 2.1 + EDR (Enhanced Data Rate - up to 2.1 Mbit/s, supports Secure Simple Pairing) Range up to 30 meters
  • Diagnostic connector: ISO 15031-3 (SAE J1962); 16-pin connector with integrated LED light
  • Protected USB port
  • Micro-SD card reader with flexible rubber cover
  • Connecting older adapter cables (vehicle-specific) to the 16-pin CARB connector

Power supply
  • 6-36 V, reverse polarity protected, maximum current consumption 500 mA
  • Display of voltage monitoring of the vehicle battery at Snooper+ and in the Diagnostic mask

Conformity
EMC (2014/30/EU), CE (2011/65/EU) and LVD (2014/65/EU)
Supported buses
  • 2x HS CAN (ISO 11898-2), SW CAN (SAE J2411)
  • K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708)
  • TTL and SPI, (analog in, 5 Volt out)

Casing
  • Rubberized casing for safe handling
  • Professional mounting bracket - 350° rotatable - for optimal attachment during work

Weight
0,48 kg
Dimensions
180 x 85 x 30 mm (L x W x H), 1,600 mm
USER TRAINING

Develop both your theoretical and practical use of SNOOPER+ diagnostics with SNOOPER+ diagnostics user training.

Familiarise yourself or your employees with SNOOPER+ software and make sure your knowledge of the system is always up-to-date so that you can always carry out reliable diagnostics on vehicles.

In our SNOOPER+ diagnostics user training, we provide background information and user tips and show you alternative ways to use the SNOOPER+ diagnostics system both quickly and efficiently.

Training will commence as soon as you purchase your SNOOPER+ diagnostics solution. Training will be conducted with your specialist.

Downloads

For information click on the buttons below to download our brochures on the SNOOPER+ Diagnostics Solution.
